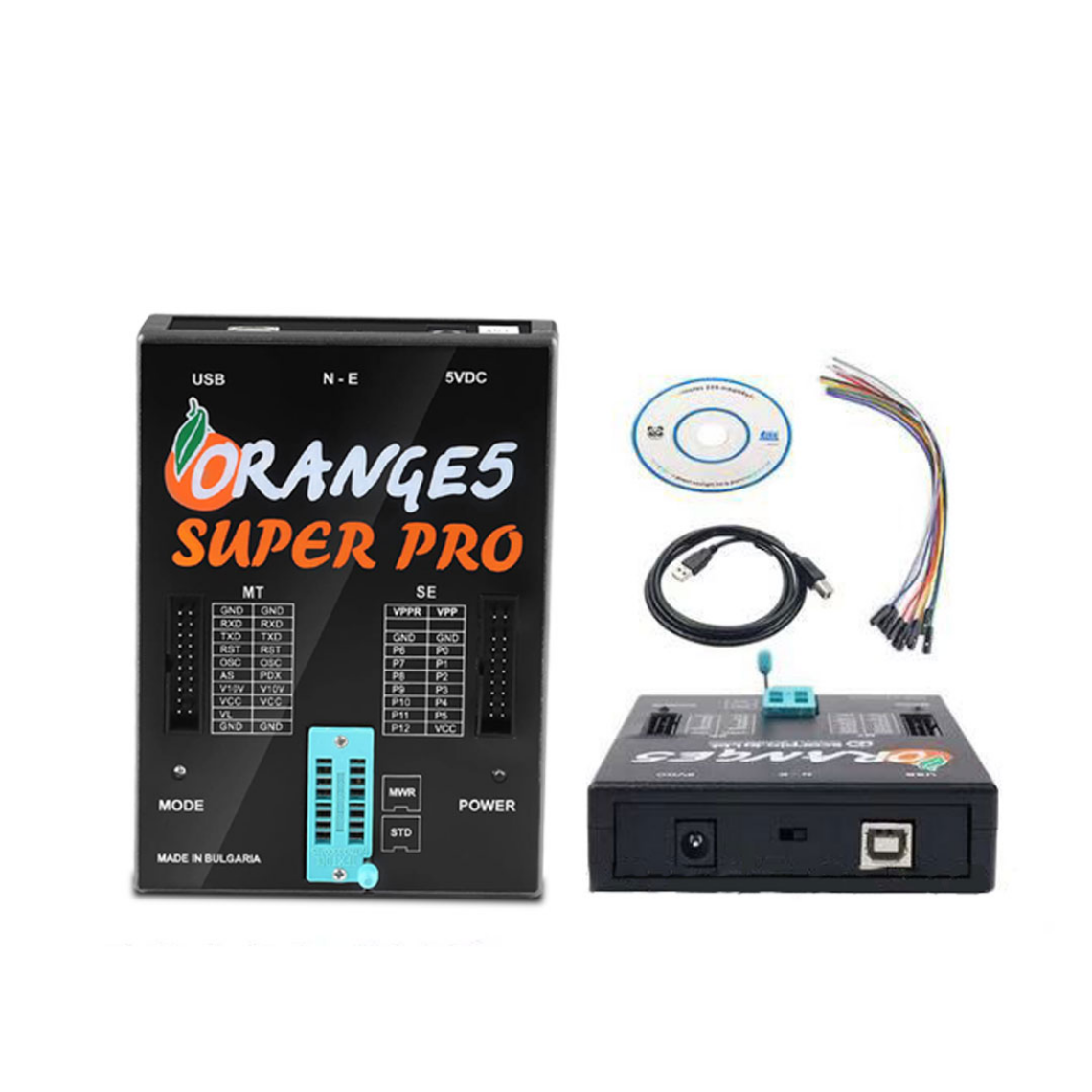

Orange-5 Programmer

Is a professional general purpose programming device for memory and microcontrollers. Unique feature of the current series

programmers is built-in macrolanguage for writing down protocols, which gives fast and easy capability to add new types of

ICs, precisely meeting manufacturers' requirements to read/write algorithms.

Hardware Features :

· Universal easy to plug panel ZIF16 for EEPROMs

· Control of contacts in the sockets

· Two expansions sockets (MT & SE)

· Protection against overcurrent

· Overload voltage protection

· Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional  static 10V for microcontrollers.

· High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)

· Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

· Capability of functional emulation of class CDC USB devices

Built-in 32-bit virtual machine

·Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
